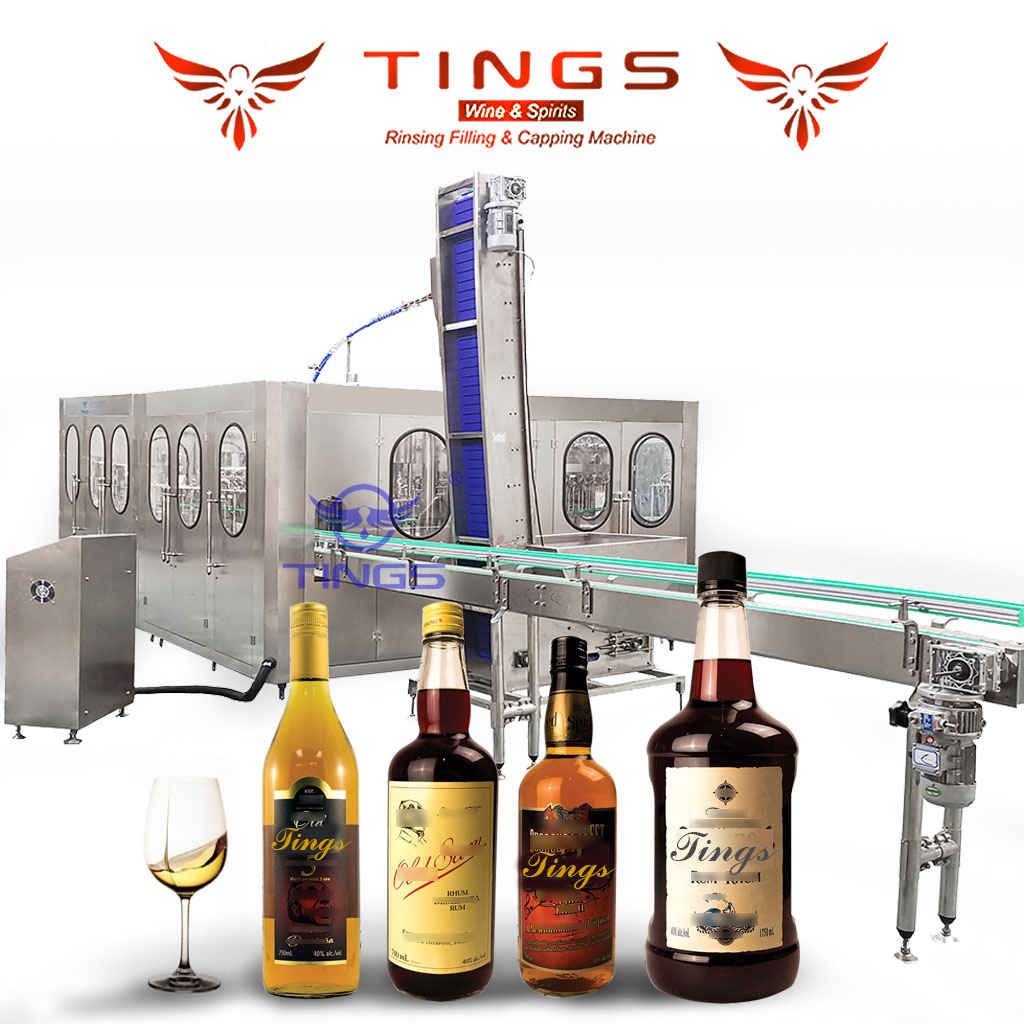

15000 to 18000BPH Automatic Wines Rinsing Filling Capping Machine

Model No.: XGF40-40-10

Product Specification

Technical Process

Process Description

Main material: stainless steel 304/316
Working Way: rotary rinsing
Function: After the bottle have been conveyed into the filling machine, rinsing pliers will carry and fix the bottles to the rinsing nozzles. Then after the rinsing of spraying water from the high pressure rinsing nozzles, the bottles are ready to be sent to the filling part.

Material: stainless steel 304/316, nickel not less than 8%
Function: After the bottle have been rinsed, the rotary transmission plate between the rinsing and filling parts will transmit the bottles to the filling part. Then the bottle will be fixed and fully filled precisely in equal volume of water by high pressure spraying filling nozzles. And then the filled bottles will be transmitted to the capping part.

Material: stainless steel 304/316, nickel not less than 8%

Function: The filled bottles are capped by the rotating capping head (It depends on what type of bottle cap it is, for example: crown cap will need different capping device like the following picture). Then the finished products will be conveyed out of the filling machine by the product conveying belt.

Main Material: stainless steel 304/316, nickel not less than 8%
Function: The product conveying belt conveys the filled and capped water out of the filling machine and transmit them to other processing equipment of the production line.

Main Material: stainless steel 304/316, nickel not less than 8%
Function: help to check if there is any impurity in the bottled water products, when the products pass by as they are being transmitted out of the filling machine.

Imported touch screen PLC famous brand ensures stable and high efficient working, easy operating as well as durability of the filling machine.

Feeding the bottle caps automatically and precisely with right direction.

Technical Data

Model	XGF40-40-10
Capacity	15000 to 18000 BPH (bottles per hour) subject to 500ml bottle
Suitable Bottle Volume	200ml to 2000ml
Working Voltage	380V/50Hz (Can be customized)
Filling Precision	≤ ±5mm (liquid level)
Filling Method	normal pressure and temperature
Water Pressure For rinsing bottle	0.3Mpa
Water Consumption For Washing Bottle	800L
Gas Source Pressure	0.7Mpa
Gas Consumption	1m³/min

Main Features of The Machine

Bottle rinsing-filling-capping integrated processing
Famous brand Touch screen PLC control
Output auto-counting
Liquid level instruction, auto-stop when it is rack of liquid
Bottle caps automatically feeding, auto-stop when run out of caps
Auto-stop when run out of bottles
Inner auto-wash of the machine
Auto-cooling system ensures no overheat happen inside the whole machine
Optional protection system: warning and auto-stop when protective door is not closed

More Capacity Choices for The Model

No.	Model Number	Capacity
1	XGF8-8-3	2000 to 3000 BPH
2	XGF14-12-5	3000 to 6000 BPH
3	XGF18-18-6	6000 to 9000 BPH
4	XGF24-24-8	10000 to 12000 BPH
5	XGF32-32-10	12000 to 15000 BPH
6	XGF40-40-10	15000 to 18000 BPH
7	XGF50-50-12	20000 to 24000 BPH

Optional Device

Cap Washing & sterilizing device Main Material: stainless steel 304/316, nickel not less than 8% Function: As the Elevator cap feeding machine conveys the bottle caps up and the caps pass through the cap washing and sterilizing device. Then the device will wash and sterilize the caps with water who has been mixed with Ozone.
