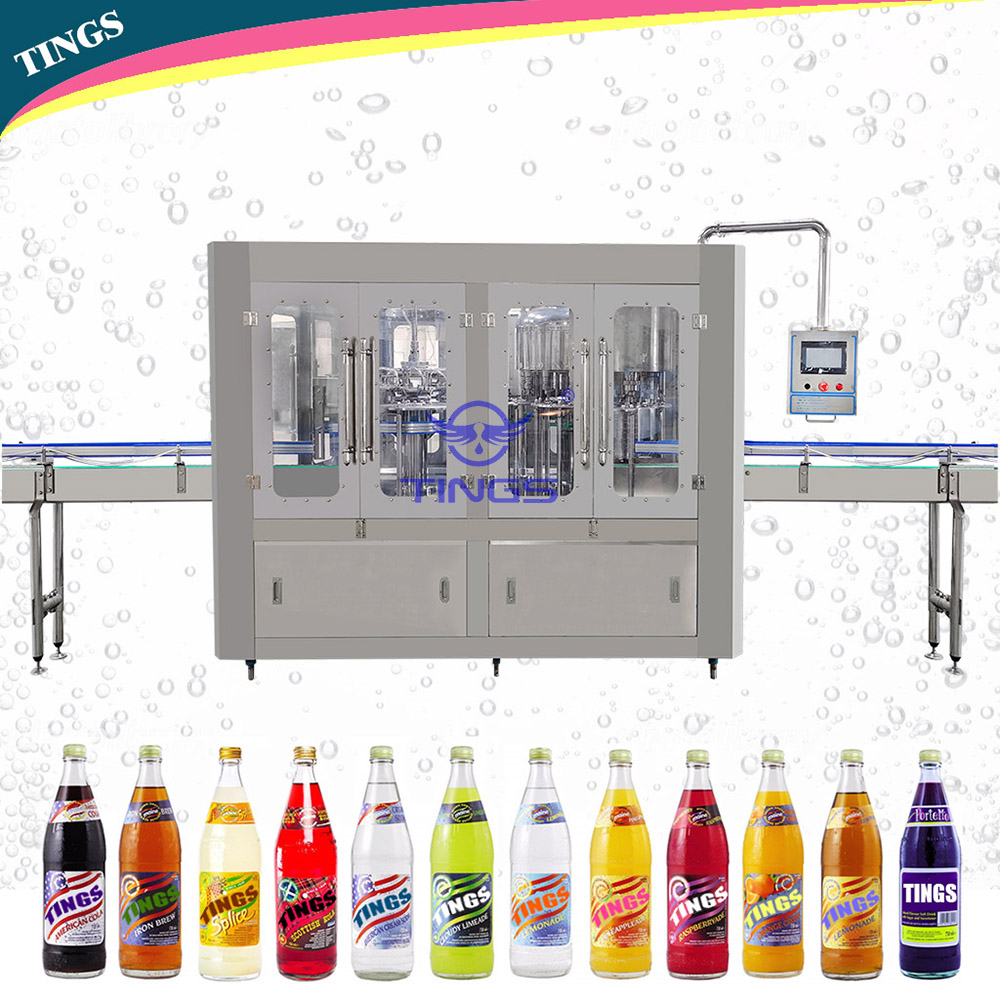

3000 to 4500BPH Automatic Glass Bottle Soft Drinks Filling Machine
Model No.: XGF14-12-5
Product Specification
Technical Process
Process Description
- Rinsing Part
Material: stainless steel 304/316, nickel not less than 8%
Working Way: rotary rinsing
Function: After the glass bottle have been conveyed into the filling machine, rinsing pliers will carry and fix the bottles to the rinsing nozzles. Then after the rinsing of spraying water from the high pressure rinsing nozzles, the bottles are ready to be sent to the filling part.
- Filling Part
Material: stainless steel 304/316, nickel not less than 8%
Function: After the glass bottle have been rinsed, the rotary transmission plate between the rinsing and filling parts will transmit the bottles to the filling part. Then the bottle will be fixed and fully filled precisely in equal volume of juice by high pressure spraying filling nozzles. And then the filled bottles will be transmitted to the capping part.
- Capping Part
Or
Material: stainless steel 304/316, nickel not less than 8%
Function: The filled bottles are capped by the rotating capping head (It depends on what type of bottle cap it is, for example: crown cap will need different capping device like the following picture). Then the finished products will be conveyed out of the filling machine by the product conveying belt.
- Cap Feeding Device
Material: stainless steel 304/316, nickel not less than 8%
Function: This device feeds caps into the capping part of the filling machine

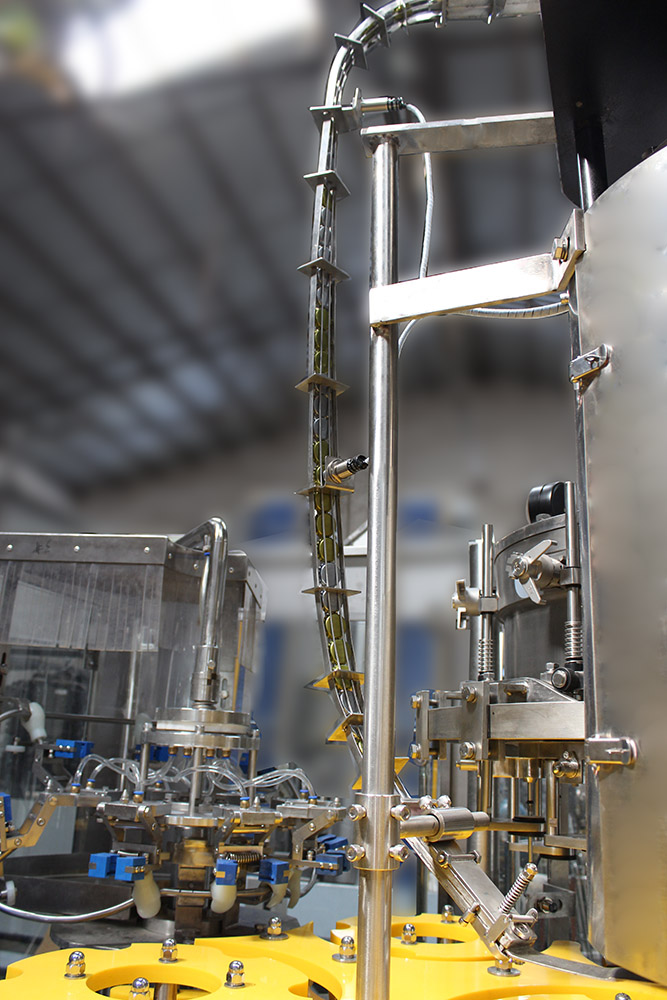

Material: stainless steel 304/316, nickel not less than 8%
Function: This device feeds caps into the capping part of the filling machine. It has two caps feeding sensor (auto feeding and auto stop when it is lack of caps).
- Product Conveying Belt
Main Material: stainless steel 304/316, nickel not less than 8%
Function: The product conveying belt conveys the filled and capped bottle out of the filling machine and transmit them to other processing equipment of the production line.
- Lamp Checking Box
Main Material: stainless steel 304/316, nickel not less than 8%
Function: help to check if there is any impurity in the bottled juice products, when the products pass by as they are being transmitted out of the filling machine.
- Touch Screen PLC Control
Imported touch screen PLC famous brand ensures stable and high efficient working, easy operating as well as durability of the filling machine.
Technical Data
| Model | XGF14-12-5 |
| Capacity | 3000 to 4500 BPH (bottles per hour) subject to 500ml bottle |
| Suitable Bottle Volume | 200ml to 2000ml |
| Working Voltage | 380V/50Hz (Can be customized) |
| Filling Precision | ≤ ±5mm (liquid level) |
| Water Pressure For rinsing bottle | 0.3Mpa |
| Water Consumption For Washing Bottle | 300L |
| Gas Source Pressure | 0.7Mpa |
| Gas Consumption | 1m³/min |
Main Features of The Machine
- Bottle rinsing-filling-capping integrated processing
- Famous brand Touch screen PLC control
- Output auto-counting
- Liquid level instruction, auto-stop when it is lack of liquid
- Bottle caps automatically feeding, auto-stop when run out of caps
- Auto-stop when run out of bottles
- Inner auto-wash of the machine
- Auto-cooling system ensures no overheat happen inside the whole machine
- Optional protection system: warning and auto-stop when protective door is not closed
More Capacity Choices for The Model
No. | Model Number | Capacity |
1 | XGF8-8-3 | 2000 to 2500 BPH |
2 | XGF14-12-5 | 3000 to 4500 BPH |
3 | XGF18-18-6 | 6000 to 8000 BPH |
4 | XGF24-24-8 | 10000 to 11000 BPH |
5 | XGF32-32-10 | 12000 to 13000 BPH |
6 | XGF40-40-10 | 15000 to 16000 BPH |
7 | XGF50-50-12 | 20000 to 22000 BPH |
Optional Device
 |
Cap Washing & sterilizing device Main Material: stainless steel 304/316, nickel not less than 8% Function: As the Elevator cap feeding machine conveys the bottle caps up and the caps pass through the cap washing and sterilizing device. Then the device will wash and sterilize the caps with water who has been mixed with Ozone. |
- Elevator cap feeding machine
Feeding the bottle caps automatically and precisely with right direction.
The whole Device Diagram (just for reference)
